SpringCloud:服务注册与发现之zookeeper

Tin

2022-7-6

SpringCloud

注册中心：zookeeper

服务提供者

1.建moudle

新建cloud-provider-payment8004微服务模块

2.写pom

与之前不同的是需要导入 springboot整合zookeeper的包

        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
        </dependency>

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud6</artifactId>
        <groupId>com.tinstu.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-provider-payment8004</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>
        <dependency>
            <groupId>com.tinstu.cloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

3.写yml

application.yaml

#8004表示注册到zookeeper服务器的支付服务提供者端口号
server:
  port: 8004

#服务别名----注册zookeeper到注册中心名称
spring:
  application:
    name: cloud-provider-payment
  cloud:
    zookeeper:
      connect-string: 120.48.39.100:2181

4.启动类

PaymentMain8004

@SpringBootApplication
@EnableDiscoveryClient  ////该注解用于向使用consul或者zookeeper作为注册中心时注册服务
public class PaymentMain8004 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8004.class,args);
    }
}

5.业务类

controller

@RestController
@Slf4j
public class PaymentController {
    @Value("${server.port}")
    private String serverPort;

    @RequestMapping(value = "/payment/zk")
    public String zk(){
        return "SpringCloud+zookeeper:"+serverPort+"***"+ UUID.randomUUID().toString();
    }
}

6测试

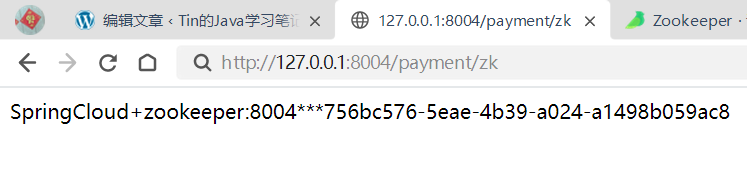

访问:http://127.0.0.1:8004/payment/zk

肯遇到的问题

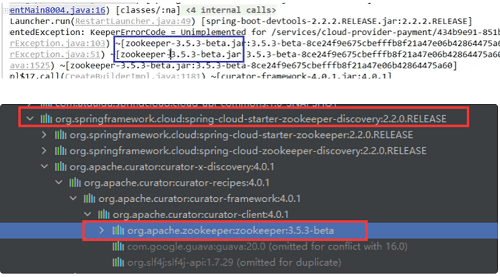

spring-cloud-starter-zookeeper-discovery自带zookeeper3.5.3

如果安装的zookeeper版本高于3.5.3则不会出现冲突报错。我是3.5.7没有报错
报错解决方案：排除引入的3.5.3-beta，引入与安装的zookeeper对应的版本

 <!-- SpringBoot整合zookeeper客户端 -->
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
    <!--先排除自带的zookeeper3.5.3-->
    <exclusions>
      <exclusion>
        <groupId>org.apache.zookeeper</groupId>
        <artifactId>zookeeper</artifactId>
      </exclusion>
    </exclusions>
  </dependency>
  <!--添加zookeeper3.5.7版本-->
  <dependency>
    <groupId>org.apache.zookeeper</groupId>
    <artifactId>zookeeper</artifactId>
    <version>3.5.7</version>
  </dependency>

思考

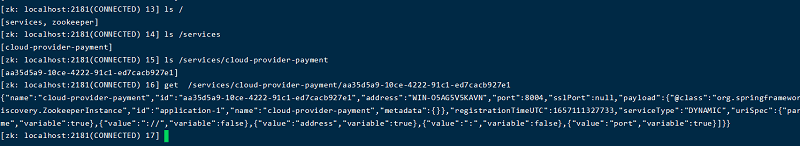

注册到zookeeper的微服务是一个zNode节点，这个节点是临时节点还是持久节点？

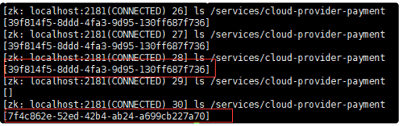

我们在注册的时候会生成一个流水号id，我们将服务断开，发现刚断开时zookeeper还保存着该服务，等待一段时间后，该节点被删除。所以是临时节点。重新启动8004的微服务，可以看到生成了一个新的流水号id

服务消费者

1建moudle

新建cloud-consumerzk-order80

2.pom

和8004的一样

pom.xml


    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>
        <dependency>
            <groupId>com.tinstu.cloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

3.yml

application.yaml

#8004表示注册到zookeeper服务器的支付服务提供者端口号
server:
  port: 80

#服务别名----注册zookeeper到注册中心名称
spring:
  application:
    name: cloud-consumerzk-order80
  cloud:
    zookeeper:
      connect-string: 120.48.39.100:2181

4.主启动类

ConsumerMain80

@SpringBootApplication
@EnableDiscoveryClient
public class ConsumerMain80 {
    public static void main(String[] args) {
        SpringApplication.run(ConsumerMain80.class,args);
    }
}

5.配置类

config.ApplicationContextConfig

@Configuration
public class ApplicationContextConfig {
    @Bean
    @LoadBalanced  //使用@LoadBalanced注解赋予RestTemplate负载均衡的能力
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }
}

6.业务类

OrderZKController

@RestController
@Slf4j
public class OrderZKController {
    public static final String INVOKE_URL = "http://cloud-provider-payment";
    @Resource
    private RestTemplate restTemplate;

    @GetMapping("/consumer/payment/zk")
    public String paymentInfo() {
        return restTemplate.getForObject(INVOKE_URL + "/payment/zk", String.class);
    }
}

测试:

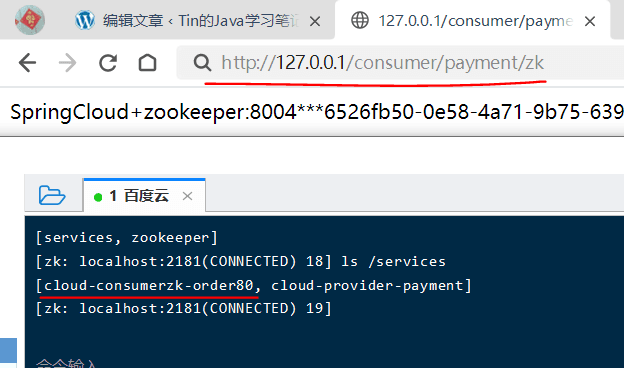

访问: http://127.0.0.1/consumer/payment/zk

zookeeper集群的搭建

zookeeper:集群-集群操作（选举机制）
