SpringCloud:服务注册与发现之Consul

Tin

2022-7-7

SpringCloud

Consul简介

官网:https://www.consul.io/docs/intro

中文文档:https://www.springcloud.cc/spring-cloud-consul.html

开源的分布式服务发现和配置管理系统 GO语言开发

提供了微服务系统中心的服务治理，配置中心，控制总线等功能

优点：

包括，基于raft协议，比较简洁；支持健康检查，同时支持HTTP和DNS协议支持跨数据中心的WAN集群。
提供图形界面跨平台，支持Linux，MAC，Windows

能干嘛？

Service Discovery：服务发现，提供HTTP和DNS两种发现方式
Health Checking: 健康检查，支持多种方式，HTTP，TCP，Docker，Shell脚本定制化
KV Store: Key，Value的存储方式
Secure Service Communication: 安全的服务交流
Multi Datacenter:多数据中心
可视化web界面

安装consul

Windows

下载只有一个exe 双击，然后在其所在目录cmd，

查看版本:consul --version

启动:consul agent -dev

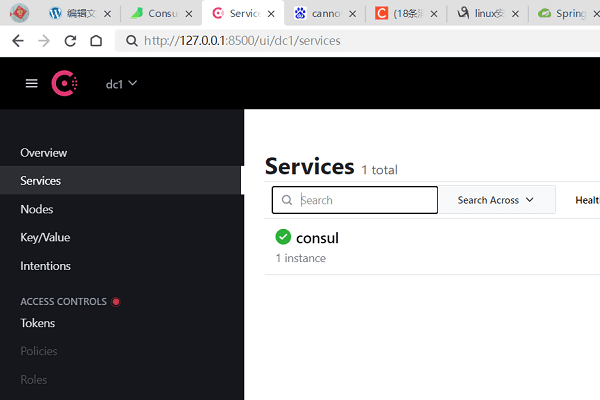

web界面: http://127.0.0.1:8500/ui/dc1/services

linux:

1.下载zip压缩包: wget https://releases.hashicorp.com/consul/1.12.2/consul_1.12.2_linux_amd64.zip

2.unzip：unzip consul_1.12.2_linux_amd64.zip

3../consul

4.启动:./consul agent -dev

生产者服务注册

1.建module

新建Module支付服务：cloud-providerconsul-payment8006

2.pom.xml

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud6</artifactId>
        <groupId>com.tinstu.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-providerconsul-payment8006</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <!--SpringCloud consul-server -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-discovery</artifactId>
        </dependency>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--日常通用jar包配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

3.yaml

application.yml

###consul服务端口号
server:
  port: 8006

spring:
  application:
    name: consul-provider-payment
  ####consul注册中心地址
  cloud:
    consul:
      host: localhost
      port: 8500
      discovery:
        service-name: ${spring.application.name}

4.主启动类

PaymentMain8006

@SpringBootApplication
@EnableDiscoveryClient
public class PaymentMain8006 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8006.class, args);
    }
}

5.业务类

PaymentController

@RestController
@Slf4j
public class PaymentController {
    @Value("${server.port}")
    private String serverPort;

    @RequestMapping(value = "/payment/consul")
    public String paymentConsul() {
        return "springcloud with consul: " + serverPort + "\t" + UUID.randomUUID().toString();
    }
}

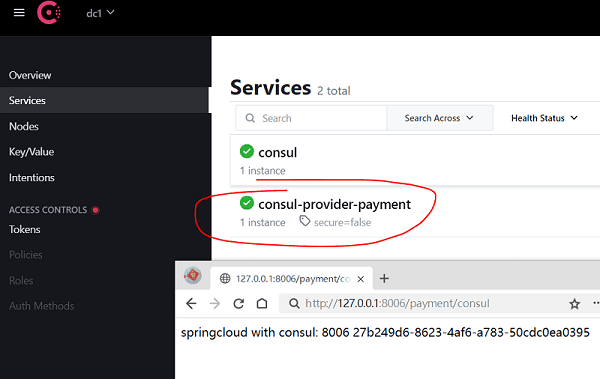

测试

消费者服务注册

1.建module

新建cloud-consumerconsul-order-80

2.pom

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud6</artifactId>
        <groupId>com.tinstu.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-consumerconsul-order-80</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>
        <!--SpringCloud consul-server -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-discovery</artifactId>
        </dependency>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--日常通用jar包配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

3.yml

application.yaml

###consul服务端口号
server:
  port: 80

spring:
  application:
    name: cloud-consumer-order
  ####consul注册中心地址
  cloud:
    consul:
      host: localhost
      port: 8500
      discovery:
        #hostname: 127.0.0.1
        service-name: ${spring.application.name}

4.主启动类

OrderConsulMain80

@SpringBootApplication
@EnableDiscoveryClient
public class OrderConsulMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderConsulMain80.class, args);
    }
}

5.配置类

config.ApplicationContextConfig

@Configuration
public class ApplicationContextConfig {
    @Bean
    @LoadBalanced
    public RestTemplate getRestTemplate() {
        return new RestTemplate();
    }
}

6.业务类

OrderConsulController

@RestController
@Slf4j
public class OrderConsulController {
    public static final String INVOKE_URL = "http://consul-provider-payment";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping("/consumer/payment/consul")
    public String paymentInfo() {
        String result = restTemplate.getForObject(INVOKE_URL+"/payment/consul",String.class);
        return result;
    }
}

7.测试
